Sheldon Manufacturing, Inc. (ShelLab) was founded in 1970 with the goal of being a worldwide leading manufacturer of constant temperature equipment. ShelLab has been designing and manufacturing equipment for the biotechnology, pharmaceutical, research and production markets ever since. Over the past 40 years Sheldon has worked with industry leaders to design solutions for production and research needs across the entire constant temperature/environment spectrum. Over the years, ShelLab's reputation has grown as an innovator of dependable and reliable equipment, designed demanding environments.

Lab Constant Temp. Equipment

---

CO₂ Incubators

SHEL LAB CO₂ Incubators combine contamination control, decontamination, and precise temperature and CO₂ control for years of constant performance. Shellab CO₂ Incubators come with unique features :

• Coved Corners for Easy Cleaning
• New Anti-Corrosion Zinc Anode for Easy Set-Up & Tap Water Use
• Patented Copper-Housed Bacteriostatic HEPA Filter for Superior Contamination Prevention
• Built-In CO₂ Tank Switcher for auto tank changeover
• Factory Pre-Set Door Thermostat
• Pre-Heated CO₂ Gas Inlet for Increased Temperature Uniformity
• Front-Mounted Gas , USB Connections for Convenience
• 5 Year Limited Warranty
• 7 Year Guarantee on IR Sensor

MODELs	SCO-2W	SCO-5A*	SCO-6AD* 180°C High Heat Sterilisation	SCO-5W*	SCO-6WE*	SCO-31
VOLUMEs	50 Ltr.	160 Ltr.	164 Ltr.	170 Ltr.	190 Ltr.	898 Ltr.
JACKET Type	Water	Air		Water		Air
TEMPERATURE RANGE	Ambient +5°C to 60°C
CO2 CONTROL	0-20 % ; IR ( Infrared )Sensor , with 7 Year Guarantee !
HUMIDITY RANGE	Ambient to 95%
STANDARD FEATURES	Bright LED display ; Stainless Steel Chamber ; Coved corners ; Non Tip Shelf system ; Audio Visual Alarms ; Microprocessor PID Control ; USB/RS232 interface ; Door Contact Switch for CO2 stoppage ; Non Contact Heaters ; Heated Outer door ; Removable Inner door Gaskets ; Powder coated exterior ; Independent Over Temp. Protection ; Push Button Calibration of Temp. & CO2 ; Bacteriostatic Cage Copper HEPA filters 0.1/0.1/0.3 micron ; Heated CO2 Line & Sample Ports ; 1" Access port for external equipment connection ; [ Water Jacket models : 3 Wall design ; Copper Water Jacket with Lifetime Warranty ! ] 5 Year Warranty on unit ; 7 Year Guarantee on IR Sensor * Stacked Versions available

Please contact us for a full technical discussion and solutions for your application !

Shaking Incubators

Shellab Offers a complete range of Shaking Incubators ranging from the Benchtop Models SI-2 & SI-4 to the Stackable SI-6 , SI-6R & the Very large ( & stackable ) SI-9 , SI-9R. Also a High speed shaking version 800rpm of the SI-6R is also available.

MODELs	SSI-2 Bench Top Mini	SSI-3 Bench Top	SSI-5 Bench / Floor & Stackable	SSI-10 Large Size & Stackable	SSI-5R REFRIGERATED Bench/ Floor & Stackable	SSI-10R REFRIGERATED Large Size & Stackable
Chamber Capacity	30 Litres	113 Litres	170 Litres	306 Litres	170 Litres	306 Litres
Shaking Capacity	3 Kg	8 Kg	12 Kg	20 Kg	12 Kg	20 Kg
Temperature Range	Ambient +5°C to 60°C				Ambient -20°C to 60°C
Shaking Speed	25 - 400 rpm ( 800rpm High Speed model of SI6R also available )
Platform Size WxD cm	24 x 30	44 x 44	44 x 44	56 x 81	44 x 44	56 x 81
Max. Flasks 250ml	8 nos.	25 nos.	25 nos.	55 nos.	25 nos.	55 nos.
FEATURES	Microprocessor PID controls , Temp., RPM & Time alarms , Independent Over temperature Protection , Digital Keypad , Stainless steel interiors , Large LED display , Self centering Universal Platform , Tool less Lift out platform design, 4 post Counterbalanced Drive mechanism , Door interlock switch ; Transparent Top opening Hood for SI2 & SI4 ; Electrical outlets, Internal Light & Access ports , Universal Spring Platform for SI 2 (Option )

Please contact us for a full technical discussion and solutions for your application !

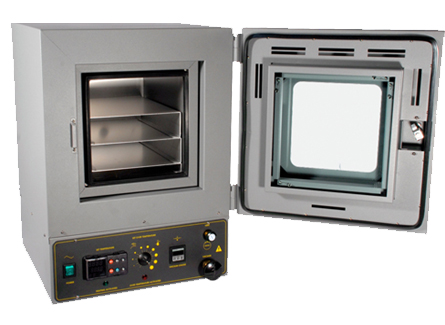

Vacuum Ovens

SHEL LAB Vacuum Ovens are the most rugged vacuum ovens available today. Each oven features a stainless steel interior , 3 shelves , over-temperature protection, a fully programmable Waltlow controller, and an easy-to-read digital vacuum gauge. Backed by a 2 Year Warranty !

MODELs	SVAC-1	SVAC-2	SVAC-4
Controller	Microprocessor PID Programmable Temp. Control
Volume ( Litres )	16	47	128
Internal Dimension WDH	23x30x23	30x51x30	46x61x46
Total Shelf Area cm2	2,070	4,750	8,400
Temperature Range	Ambient +10 to 240°C

• Silicone Gaskets for GP/Mixed Applications
• Flouro-Silicone Gaskets for Acidic applications
• Buna Gaskets for Solvent applications (150oC)
• Vacuum Pumps ( Standard / Chemical duty / Dry )

Please contact us for a full technical discussion and solutions for your application !

BACTRON Anaerobic & Hypoxia Workstations

SHEL LAB Bactron Anaerobic Workstations have made a name for themselves over the last 2 decades. As more labs realize the cost savings involved with moving from vacuum jars or bags to anaerobic workstations, they also begin realizing the improvement in successful culturing and identification. The Bactron anaerobic environmental chamber is designed to allow efficient and dexterous glove-free handling and inspection of samples. Modular systems within the Bactron anaerobic chamber facilitate the completion of procedures from unpacking material to inoculation, incubation, inspection and recovery--all without a single exposure to oxygen.

MODELs	Bactron EZ	Bactron 300	Bactron 600	Bactron 900
WORKING CHAMBER Volume	300	345	490	490
INCUBATOR Volume	300	52	153	205
WORKING CHAMBER Volume	300	345	490	490
Petri Plate Capacity	150	310	600+	900+
Temp. Range & Uniformity	Amb. to 42 oC	Amb.+5 to 70°C ; ± 0.1°C @ 37 o
AIR LOCK Volume	5	17	40	40
Exterior Dimensions (wxdxh)	89 x 71 x 76	124 x 82 x 85	223 x 82 x 70	223 x 82 x 70
Certifications	UL, cUL, CE , TUV
Unit Supplied with	Anatox, Catalyst	Vacuum Pump , 2 Palladium Catalysts , Light Fixture ; Sleeve assembly, Cuffs

Please contact us for a full technical discussion and solutions for your application !

GENERAL PURPOSE & BOD ( Low Temp.) INCUBATORS

SHEL LAB General Purpose Laboratory Incubators are available in sizes of 2 to 38.4 cu.ft. Laboratory incubator applications are diverse because of the many different industries and protocols they are used for, so we have designed the SHEL LAB Incubator family to accommodate a wide range of applications.

	INCUBATORS							BOD INCUBATORS
MODELs	SMI-2	SMI-6	SMI-7	SMI-11	SMI-12	SMI-31	SMI-39	SRI-3	SRI-6P	SRI-20	SRI-27
VOLUMEs	55	170	189	319	166 x 2	793	1133	92	170	565	763
Temp. range	Ambient +5 to 70°C							-10 to 45°C
Temp. Uniformity	± 0.35°C at 37°C							± 0.5°C at 37°C
Standard Features	Microprocessor controls ; Digital LED display ; Independent Over Temperature Protection ; Air Jacket ; Triple wall construction ; Heated outer door ; Touchpad Temp. Calibration
Special features	Access port , Safety glass door							1 internal electrical connection

Please contact us for a full technical discussion and solutions for your application !

OVENS

The SHEL LAB family of laboratory ovens range in size from 2 cu.ft. to 40 cu.ft. with many different features available. Oven applications are very diverse, but it is possible to break down their uses into three main categories: Drying, Baking and Curing.

	Gravity Air Convection			Forced Air / Fan Circulation
MODELs	SGO-1	SGO-3	SGO-5	SMO-3	SMO-5	SMO-14	SMO-28
Volume Litres	44	96	153	85	142	385	793
Temp. Range	Ambient +10 to 225°C			Ambient +10 to 200 / 260°C
Features	Ambient +10 to 225°C

Please contact us for a full technical discussion and solutions for your application !

WATER BATHS / BEAD BATHS

The SHEL LAB Water Baths are truly unique in construction. Shellab were the first to introduce the non-contact recessed heating element to the analytical research marketplace. This design specifically curtails element burnout and eliminate tank hot spots that are chronic challenges for other water baths.
BEAD BATHS : Shellab also offers revolutionary Waterless Bead Baths ! NO WATER, NO CONTAMINATION !

	General Purpose Baths				Reciprocating / Shaking Baths
MODELs	W 2M	W 6M	W 14M	W 20M	WS 17	WS 27
Bath Capacity	2 litres	6 litres	14 litres	20 litres	17 Litres	27 litres
Temp. Range	Ambient +5°C to 90°C
Features	PID Microprocessor Controls, Air Jacket Design, Stainless steel tank, Non contact heaters, Powder coated housing, Recessed Soft key Controls, LED display, Calibration , Independent Overtemperature protection.

Please contact us for a full technical discussion and solutions for your application !

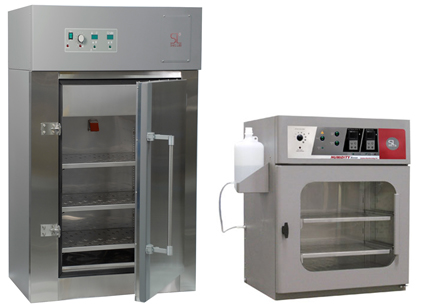

HUMIDITY CABINETS

SHEL LAB Humidity Test Cabinets provide a controlled environment for a wide range of industrial and biotechnology testing applications. This line is designed to duplicate a natural condition, which allows testing the limitations of a sample when exposed to various temperature and moisture fluctuations.

MODELs	SHC-10	SHC-28	SHC-10R	SHC-28R
VOLUMEs	255	795	255	795
Temp. Range	Ambient +10 °C to + 70 °C			+10 °C to + 70 °C
Relative Humidity	Ambient + 10% to 95% ; Controlled

Please contact us for a full technical discussion and solutions for your application !
