Dr.Fritsch, as the oldest & the largest manufacturer in the sector, leads the development and production of SPS / FAST machinery and tailor made machinery to demanding customers. Innovation & tradition – both are inseparably linked with Dr.Fritsch. Since 1958, as a pioneer in the field of SPS/FAST sintering, Dr.Fritsch has defined standards and driven development from the beginning of the company. With over 1000 SPS/FAST furnaces/presses supplied globally Dr.Fritsch is the benchmark of the Industry and R&D sectors – Worldwide.
|
|

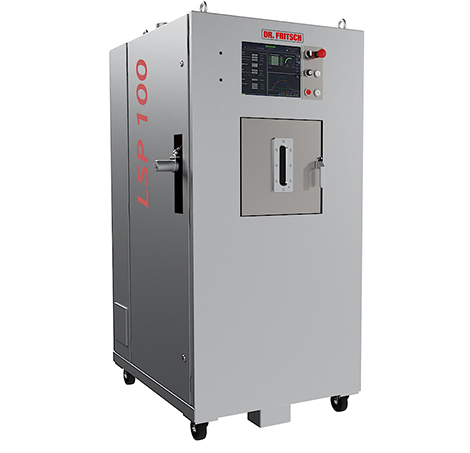

Electrical Power : |
AC 47 kVA / DC 38 kVA (Pulsed) |
| Max.Heating Current : |
7300 A |
Pressing Force : |
5 – 50 kN |
Electrode Size : |
∅ 100 x 70 mm |
Sintering Chamber : |
350 x 320 x 300 mm |
Temp. Measurement : |
Pyrometer 250 – 2400 °C
Thermocouple 0 – 1100 °3C |
Atmosphere : |
Vacuum 10mbar / Inert Gas |
Standard Features : |
|
Machine Designed for R&D
Ideal for FAST/SPS principals, with reduced grain growth
Smallest Footprint 1250x900mm
AC Operation
|
|
Options for : |
|
-TRI-FORCE for pressureless sintering, gassing-out without hindrance, Sintering with liquid phase, Pressing out of Hot rings under vacuum/gas.
-High Temperature upto 2400 °C
-DC Operation with Pulsed Generator
-Cooling System
-Glove Box Connection
-Fine Vacuum
|
| |
|
|
|
|
Electrical Power : |
AC 81 kVA |
| Max.Heating Current : |
20800 A |
Pressing Force : |
Upto 259 kN |
Electrode Size : |
200 x 200 x 40 mm or ∅ 200 x 40 mm |
Sintering Chamber : |
370 x 390 x 330 mm |
Temp. Measurement : |
Pyrometer 300 – 3000 °C
Thermocouple 0 – 1100 °3C |
Atmosphere : |
Vacuum 20mbar / Inert Gas |
Standard Features : |
|
Machine Designed for R&D & for higher throughputs
Ideal for FAST/SPS principals, with reduced grain growth
AC Operation
|
|
Options for : |
|
-High Temperature upto 3000 °C
-Electronic Stroke Control
-Cooling System
-Glove Box Connection
-Fine Vacuum
|
| |
|
|
|
|
Electrical Power : |
AC 180 kVA |
| Max.Heating Current : |
34000 A |
Pressing Force : |
15 - 650 kN |
Electrode Size : |
220 x 220 x 40 mm or ∅ 220 x 40 mm |
Sintering Chamber : |
490 x 540 x 390 mm |
Temp. Measurement : |
Pyrometer 300 – 3000 °C
Thermocouple 0 – 1100 °3C |
Atmosphere : |
Vacuum 20mbar / Inert Gas |
Standard Features : |
|
Machine Designed for R&D & for higher throughputs
Ideal for FAST/SPS principals, with reduced grain growth Precise
Control of Temp., Pressure, Stroke & Time 3 Fold Temp. Control AC Operation
|
|
Options for : |
|
-High Temperature upto 3000 °C
-Electronic Stroke Control
-Cooling System
-Glove Box Connection
-Fine Vacuum
|
| |
|
|
|
|
Electrical Power : |
AC 270 / 370 kVA |
| Max.Heating Current : |
85500 A |
Pressing Force : |
Upto 2676 kN |
Electrode Size : |
350 x 350 x 40 mm or ∅ 350 x 40 mm |
Sintering Chamber : |
590 x 690 x 620 mm |
Temp. Measurement : |
Pyrometer 300 – 3000 °C
Thermocouple 0 – 1100 °3C |
Atmosphere : |
Vacuum 20mbar / Inert Gas |
Standard Features : |
|
Machine Designed for R&D & for higher throughputs Ideal for FAST/SPS principals, with reduced grain growth Precise
Control of Temp., Pressure, Stroke & Time 3 Fold Temp. Control AC Operation
|
|
Options for : |
|
-High Temperature upto 3000 °C
-Electronic Stroke Control
-Cooling System
-Glove Box Connection
-Fine Vacuum
-Different Pressure Ranges
-Active Suction
-Cooling Plates for reducing cooling time
-Adjustable Opening Height
|
| |
|
|
|
|
Electrical Power : |
420 kVA |
| Max.Heating Current : |
85500 A |
Pressing Force : |
Upto 5000 kN |
Electrode Size : |
450 x 450 x 100 mm or ∅ 450 x 100 mm |
Sintering Chamber : |
590 x 690 x 620 mm |
Temp. Measurement : |
Pyrometer 300 – 2400 °C
Thermocouple 0 – 1100 °3C |
Atmosphere : |
Vacuum 20mbar / Inert Gas |
Standard Features : |
|
Machine Designed for higher throughputs Ideal for FAST/SPS principals, with reduced grain growth Precise
Control of Temp., Pressure, Stroke & Time 3 Fold Temp. Control AC Operation
|
|
Options for : |
|
-High Temperature upto 2400 °C
-Mold Handling System
-Smaller Transformer & Hydraulic Cylinder
-Electronic Stroke Control
-Cooling System
-Glove Box Connection
-Fine Vacuum
-Different Pressure Ranges
-Active Suction
-Cooling Plates for reducing cooling time
-Adjustable Opening Height
|
| |
|
|
