ARALAB is a company specialised in designing, developing, manufacturing of high quality climatic chambers & controlled environment rooms since 1985. They have been perfecting ways to create & control temperature, humidity, light, air flow and many other environmental conditions. Designed to meet the highest demands in scientific and industrial fields, they enable the accurate simulation of biological, chemical and physical environmental conditions. Only the highest quality components are used to manufacture the chambers so that customers can have the best equipment for their research and testing purposes. Within the space of just three & a half decades, ARALAB has established itself as one of the most innovative companies in the testing chambers field.
 |
Standard Features : |
Large Colour Touch Screen Display
50 Programs & 50 Segments
2 x PT100 Temperature sensors
Psychometric/Capacitive RH sensor
Condensation protection for test specimens
Real-Time monitoring of chamber parameters
OTP Safety Independent Limiter
1 Access Port, COM port & Wheels
|
|

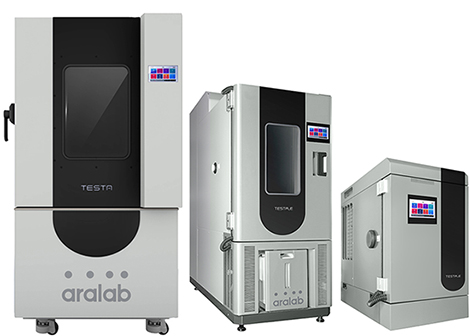

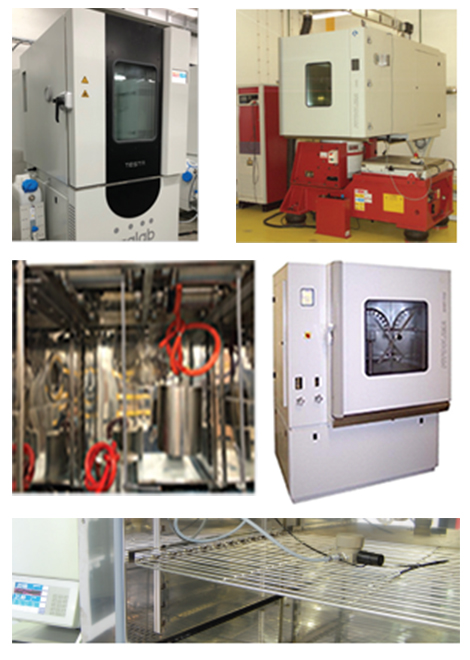

TESTA TT Series |
for Temperature Testing |
TESTA CT Series |
for Humidity Testing |
Volumes : |
30 - 1500 litres |
| Temp. Ranges : |
- 45 °C to +180 °C
or - 75 °C to +180 °C
|
Temp. Change Rate : |
3 - 15 °C / Minute |
Humidity Range : |
10 - 98 %rh |
Test Standards : |
IEC-60068 , MIL-STD331 , MIL-STD 810 etc. |
| Models |
Volume |
Width |
Depth |
Height |
Testa 30 |
30 litres |
300 mm |
250 mm |
400 mm |
Testa 60 |
60 litres |
400 mm |
400 mm |
375 mm |
Testa 100 |
100 litres |
500 mm |
500 mm |
500 mm |
Testa 200 |
200 litres |
500 mm |
600 mm |
750 mm |
Testa 300 |
300 litres |
635 mm |
600 mm |
715 mm |
Testa 400 |
400 litres |
600 mm |
800 mm |
850 mm |
Testa 500 |
500 litres |
680 mm |
770 mm |
830 mm |
Testa 1000 |
1000 litres |
985 mm |
1050 mm |
910 mm |
Testa 1500 |
1500 litres |
980 mm |
1550 mm |
910 mm |
|
Options for : |
|
High Speed ESS temperature change rates
Window in Door
Access Ports ( in Walls , Handholes in Doors, Feedthroughs etc.)
Data Logging / FitoLog Software
Water Cooled Condensor
|
| |
|
|
|
|

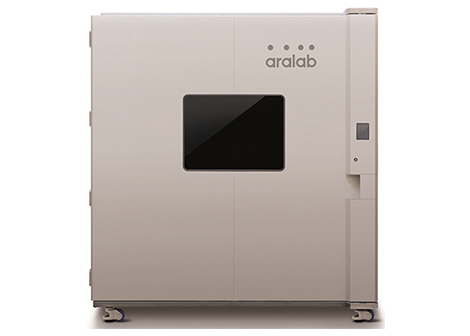

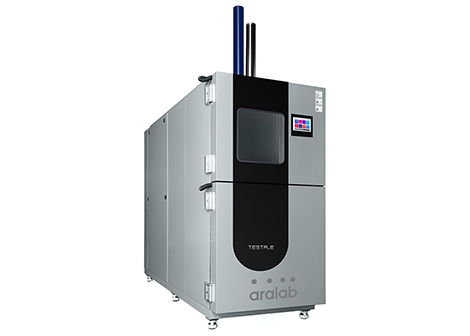

FitoTERM CT150 C2 |
| Volume : |
150 litres |
| Inner Dimensions : |
470 x 650 x 410 mm |
| Temp. Ranges : |
HOT ZONE >>> Ambient to +200 °C
COLD ZONE >>> - 75 °C to +60 °C
|
| Basket Load : |
50 Kgs |
| Transition Time : |
< 5 Seconds |
Standard Features : |
|
Large Colour Touch Screen Display
50 Programs & 50 Segments as standard
Window in Door of Hot Zone
2 x PT100 Temperature sensors, 1 each chamber
1 x PT100 movable sensor in basket
OTP Safety Independent Limiter
1 Access Port, COM port & Wheels
|
| |
|
|
|
|
FitoTERM ( Temp. ) & FitoCLIMA ( Climate ) Series |
| Volumes : |
5000 , 8000 , 12000 , 20000, 25000.... & Larger |
| Inner Dimensions : |
470 x 650 x 410 mm |
| Temp. Ranges : |
- 60 °C to +150 °C
or - 40 °C to +150 °C
or - 20 °C to +150 °C
|
| Temp. Change Rate : |
1 - 5 °C / Minute |
| Humidity Range : |
10 - 95 %rh |
Standard Features : |
|
Large Colour Touch Screen Display
50 Programs & 50 Segments
2 x PT100 Temperature sensors
Psychometric/Capacitive RH sensor
OTP Safety Independent Limiter
1 Access Port & COM port
|
| |
|
|
|
|
| Volumes : |
300, 500, 1000 , 1500 , 5000 Litres |
| Temp. Ranges : |
- 75 °C to +180 °C
or - 45 °C to +180 °C
|
| Temp. Change Rate : |
3 - 10 °C / Minute |
| Humidity Range : |
10 - 95 %rh |
Options for : |
|
Vertical / Horizontal Vibration
Cable Bend Tests with Mandrel & Weights sets
Solar / PV Tests as per IEC 61215 & IEC 61646
|
| |
|
|
|
|

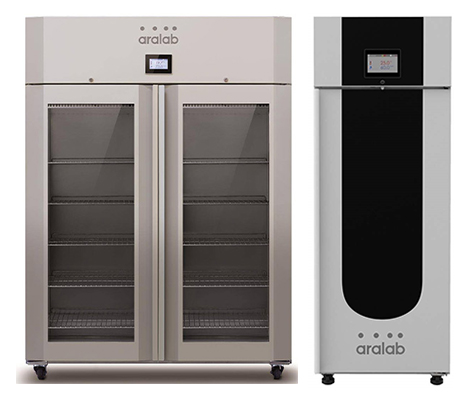

FitoCLIMA 600/1200 P/PH |
| Volumes : |
600, 1200 Litres |
| for precise Stability Tests as per : |
ICH - Q1A |
Temperature Ranges
Temp. Uniformity |
-5 °C to +45 °C
± 1.0 °C |
Humidity Range
Humidity Uniformity |
20 - 90 %rh
± 2 %rh |
Standard Features : |
|
Large Colour Touch Screen Display
32 Programs & 24 Segments as standard
Lockable, Spring Mounted Door
Micro-Steam Generator, Capacitive RH sensor
Real-Time monitoring of chamber parameters
OTP Safety Independent Limiter
4 / 8 Stainless Steel Shelves
2 Access Ports, COM port & Wheels
|
Options for : |
|
21 CFR Part 11 compliant data logging
IQ/OQ Qualification Documentation
Glass Doors
|
| |
|
|
|
|

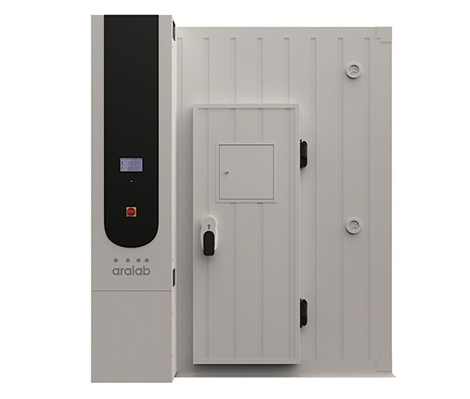

WALK-IN STABILITY ROOMS
FitoCLIMA 5000, 8000, 12000, 18000, 25000 |
| Volumes : |
5000 , 8000 , 12000 , 18000 , 25000 Litres |
| Storage Capacities : |
10 m2 , 15m2 , 20m2 , 32m2 ... .etc |
Temperature Ranges
Temp. Uniformity |
15 °C to +45 °C
± 1.0 °C |
Humidity Range
Humidity Uniformity |
35 - 95 %rh
± 2 %rh |
Standard Features : |
|
EN14509 sandwich high density injected 80mm PU foam panels
Galvanized steel Walls with white epoxy paint ;
Shelving & trays in anodized aluminium / Optionally in SS.
5 Level Shelves
Dynamic Horozontal Laminar airflow with adjustable air velocity
Synoptic Function: Real-Time monitoring of chamber parameters
Large Colour Touch Screen Display
32 Programs & 24 Segments as standard
Lockable, Spring Mounted Door
Micro-Steam Generator, Capacitive RH sensor
OTP Safety Independent Limiter
1 Access Port, COM port
|
Options for : |
|
21 CFR Part 11 compliant data logging
IQ/OQ Qualification Documentation
|
| |
|
|
|
|

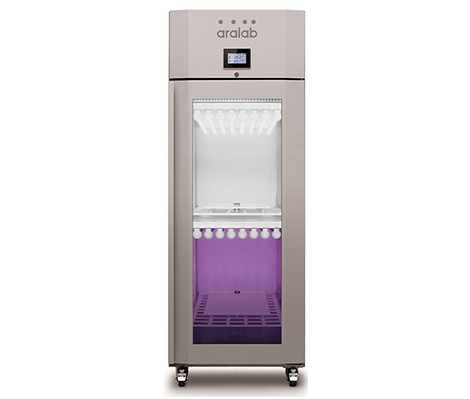

FitoCLIMA 600 PLH |
| Cabinet for precise Photo Stability Tests as per : |
ICH - Q1B |
| Volumes : |
600 litres |
| Temp. Range : |
5 °C to +45 °C |
| Temp. Uniformity |
± 2.0 °C (Lights ON) |
| Humidity Range |
35 - 95 %rh |
| Humidity Uniformity |
± 5 %rh (Lights ON) |
|
Illumination with ICH-compliant UV/Vis light source
|
Options for : |
|
Independent light-dose control of UV-A & Visible light with Radiometers
21 CFR Part 11 compliant data logging
IQ/OQ Qualification Documentation
|
| |
|
|
|
|

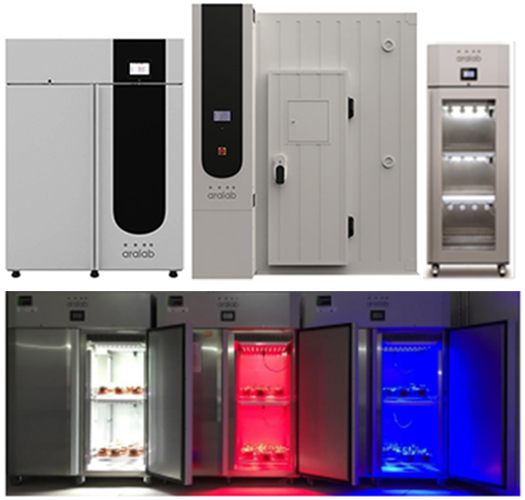

For precise Temp. & Humidity Tests |
Volumes: |
600 - 28000 Litres |
Temp. Ranges |
- 5 °C to +45 °C |
Humidity Range : |
40 - 90 %rh |
Light Modules |
Cool-White Fluorescent /
LED modules in White, Blue, Green,
Red or Far Red /
Single or Double CMH luminaire |
Light Intensities : |
200 - 1200 moles /m2s |
| Models |
Volume |
Growth Area |
Height |
FitoClima 600 |
600 L |
0.34 - 1.36 m2 |
|
FitoClima 1200 |
1200 L |
0.68 - 2.72 m2 |
|
FitoClima 2500 |
2500 L |
1.36 - 6.00 m2 |
150 to 1330 mm |
FitoClima 5000 |
5000 L |
4.5 m2 |
|
FitoClima 10000 |
10000 L |
7.5 m2 |
|
FitoClima 12000 |
12000 L |
9 m2 |
450 to 2000 mm |
FitoClima 20000 |
20000 L |
13.5 m2 |
|
FitoClima 25000 |
25000 L |
18 m2 |
|
|
Standard Features : |
EN14509 sandwich high density injected 80mm PU foam panels
Galvanized steel Walls with white epoxy paint ;
Shelving & trays in anodized aluminium / SS.
Dynamic Horozontal Laminar airflow with adjustable air velocity
Synoptic Function: Real-Time monitoring of chamber parameters
Large Colour Touch Screen Display
32 Programs & 24 Segments as standard
Lockable, Spring Mounted Door
Micro-Steam Generator, Capacitive RH sensor
OTP Safety Independent Limiter
1 Access Port, COM port
|
Options for : |
|
Connecting & integrating external devices for CO2, O2 control, Auto Irrigation, Aeration, Radiometers etc.
Special tables & trays for single / multi tier rooms for multiple growth heights
|
| |
|
|
For more details: Click here < www.aralab.pt >
Please contact us for a full technical discussion and solutions for your application !
