Germany

Nabertherm with 350 employees worldwide have been developing and producing industrial furnaces for many different applications for over 60 years. As a manufacturer, Nabertherm offers the widest and deepest range of furnaces worldwide. 150,000 satisfied customers in more than 100 countries offer proof of commitment to excellent design, quality and cost efficiency. Short delivery times are ensured due to our complete in house production and our wide variety of standard furnaces.

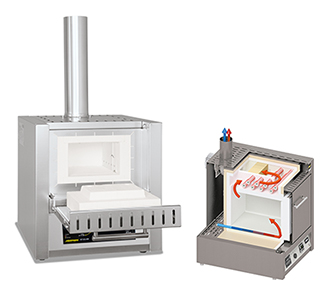

Muffle & Chamber Furnaces Table Top Laboratory Models 1100 to 1300°C

T Max. : 1100°C / 1200°C / 1300°C

Sizes : 1, 3, 5, 9, 15, 24, 40, 60, 120 litres etc.

Options : Lift up or Flap door ; Vent ( with or without Fan / Catalytic Converter) ; Air Circulation Fan ; Air Intake & Exhaust for Ashing ; Gassing Systems ( Ar / N2 / O2 / Forming gas etc.)

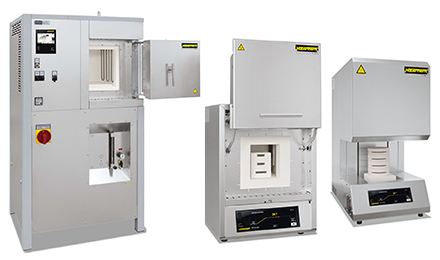

High Temperature Furnaces Table Top / Floor Models 1400 to 1800°C

HTC series ( SiC Rod Heating Elements )

T Max. : 1400oC / 1500oC / 1600oC

Sizes : 1, 3 , 8 , 16 , 40 , 64 litres etc.

LHT & HT Series ( MoSi2 Heating Elements )

T Max. : 1600oC / 1750oC / 1800oC

Sizes :1, 2, 3, 4, 8 , 16, 40 , 64 litres etc.

LHT - LB ( MoSi2 Heating Elements - LIFT BOTTOM Design )

T Max. : 1600oC / 1750oC / 1800oC

Sizes : 2 , 16 litres & larger sizes too.

Options : Gassing Systems ( Ar / N2 / O2 / Forming gas etc.)

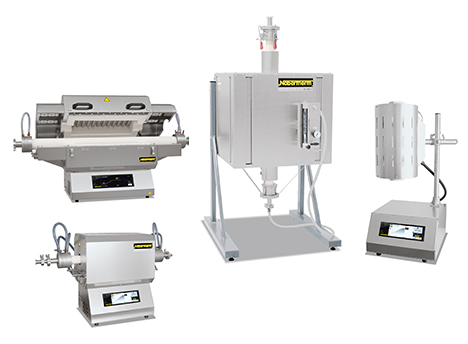

TUBE Furnaces Table Top & Standalone Models 1100 to 1800°C

T Max. : 1100 / 1200 / 1300 / 1500 / 1600 / 1700 / 1800oC

Casing Design Closed Tube / Split Tube

Type : Horizontal / Vertical


Diameter Range (ID) : 30, 50, 80, 10, 120, 170mm

Heated Lengths : 150,230,250,300,450,500,600,700,750,1000mm

Tube Types : Ceramic, Silimanite , Alumina , Quartz , APM Alloy


Options :
Gassing Systems for
Non flammable gases ( upto 4 gases ) ;

Vacuum Operation with Special Tubes & Water Cooled Flanges ; Protective Gas Connections ; Gas Tight operation with Non flammable gases ( Ar / N2 / O2 etc. ) ;

Stainless Steel Snap Flanges for quick loading ; Water Cooled Flanges Vacuum Pumps ( 20mbar to 10-5 mbar) ;

Quick Flange for tool-less loading ; Flammable Gas / H2 Gassing systems, Interfaces etc.


Also Rotating Tube Furnaces for Batch / Continuous Operation with Gassing / Vacuum

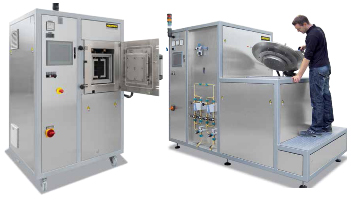

RETORT Furnaces Controlled Atmosphere / Vacuum ( VHT Series) 1800 to 3000oC

T Max. : 18000oC / 22000oC / 24000oC / 30000oC

Heating ElementsMolybdenum / Tungsten / Graphite

Standard Sizes 2, 8, 40, 70, 100 Litres etc.

Design Chamber OR Pit ( based on Tmax )


Options : Gassing Systems for Non flammable gases;

Vacuum Operation : Vacuum Pumps ( 20mbar to 10-5 mbar) ;

Flammable Gas / H2 Gassing systems with Safety Systems ;

Mass Flow Controllersfor gases etc.

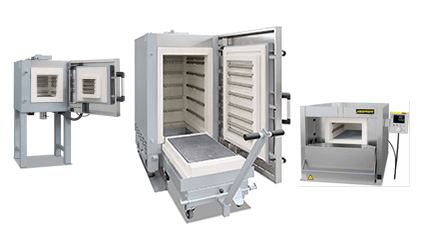

ANNEALING & HARDENING Furnaces 1200 to 1400oC

T Max. : 1200oC , 1300oC , 1400oC

Volumes : 7, 11, 17, 31, 41, 60, 120, 216 Litres etc.

Options :
Gassing Systems for
Non flammable gases

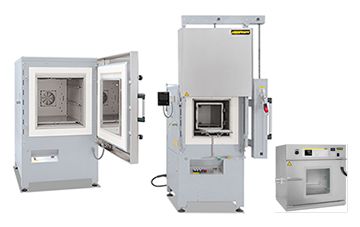

HIGH TEMP. OVENS / AIR CIRCULATION FURNACES 300 to 850oC

Temp. Range : 300oC / 450oC / 650oC / 850oC

Volume :30, 60, 120, 250, 500 Litres etc.

Air Flow :Horizontal

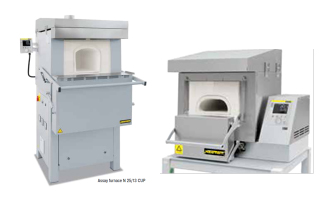

ASSAY Furnaces 1300oC

T Max. 450oC

Volume :4, 8, 25 Litres

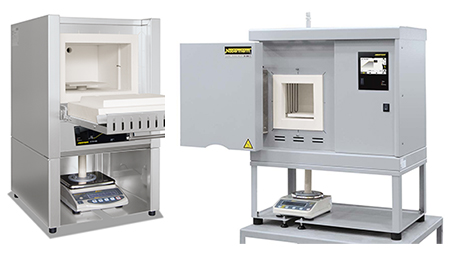

TGA / Combustion Loss Furnaces 1100-1200 / 1600-1750oC

T Max. : 1100/1200 OR 1600/1700oC

Volumes:4, 9 Litres


Weighing Scale Ranges: 2200 / 4200 / 6200 / 12000 gms

Readability:0.01 gms



MELTING Furnaces for laboratories 1000 to 1500oC

Temp. Range : 1000o / 1300o / 1500o C

Crucible Size :1, 2, 4 Litres



Please contact us for a full technical discussion and solutions for your application !
